| PN# Product Name Product Describtion | ||

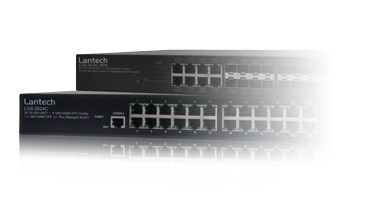

| Full SNMP Switches - All Gigabit | ||
| 8370-600 | LGS-2624C | L2 plus 26Port Gigabit switch w/4 shared dual speed SFP + 2 dual speed SFP |
| 8370-900 | LGS-2816C-RPS | 24x dual speed SFP w/8x GigaT L2 + stacking switch; Redundant Power Supply input ( 12VDC);-25C to 60C |
| 8380-300 | LTS-34452 | 44 10/100/1000T + 4 100/1000M SFP Combo + 4 1G/10G SFP L2 Plus Managed Switch |
| Industrial Center- ITU G.8032 | ||
| 8380-208 | IGS-6300-2P-HV | 3 Modular Slots L2 plus Industrial 10G Switch Chassis + 4 10G/G SFP+ slots w/1x isolated AC/DC 85~265VAC/100V~370VDC power supply + 1x redundant power socket; -20°C to 60°C |
| 8380-205 | IGS-6300-2P-DC | 3 Modular Slots L2 plus 10G Industrial Switch Chassis + 4 10G/G SFP+ slots; w/1x isolated DC 12~56VDC power supply + 1x redundant power socket; -20°C to 60°C |
| 8380-202 | IGS-6300-2P-AC | 3 Modular Slots L2 plus 10G Industrial Switch Chassis + 4 10G/G SFP+ slots w/1x isolated AC85~265VAC IEC320 power supply + 1x redundant power socket; -20°C to 60°C |
| 8380-210 | IPGS-6300-2P-HV | 3 Modular Slots L2 plus 10G Industrial PoE Switch Chassis + 4 10G/G SFP+ slots ; w/1x isolated AC/DC 85~265VAC/100V~370VDC power supply + 1x redundant power socket + 1x 48VDC PoE power input; -20°C to 60°C |
| 8380-207 | IPGS-6300-2P-DC | 3 Modular Slots L2 plus 10G Industrial Switch Chassis + 4 10G/G SFP+ slots w/1x isolated DC 12~56VDC power supply + 1x redundant power socket + 1x 48VDC PoE power input; -20°C to 60°C |
| 8380-204 | IPGS-6300-2P-AC | 3 Modular Slots L2 plus 10G Industrial Switch Chassis + 4 10G/G SFP+ slots w/1x isolated AC85~265VAC IEC320 power supply + 1x redundant power socket + 1x 48VDC PoE power input; -20°C to 60°C |
| 8380-506 | IES-3424DSFP-DC | 24 10/100TX + 4 Dual SFP L2 plus Industrial Switch w/one DC9.5~60V input; -20°C to 60°C |
| 8380-507 | IES-3424DSFP-DC-E | 24 10/100TX + 4 Dual SFP L2 plus Industrial Switch w/one DC9.5~60V input; -40°C to 75°C |
| 8380-602 | IPES-3424DSFP | 24 10/100TX POE at/af + 4 Dual SFP L2 plus Industrial Switch w/dual 48V + one 9.5~60V input; -20°C to 60°C |
| 8380-603 | IPES-3424DSFP-E | 24 10/100TX POE at/af + 4 Dual SFP L2 plus Industrial Switch w dual 48V + one 9.5~60V input; -40°C to 75°C |
| 8380-100 | IGS-5400-2P-HV | 4 Modular Slots L2 plus Industrial Switch Chassis w/1x isolated AC/DC 85~265VAC/100V~370VDC power supply + 1 redundant power slot; -20°C to 60°C |
| 8380-116 | IGS-5400-2P-AC | 4 Modular Slots L2 plus Industrial Switch Chassis w/1x AC85-265VAC IEC320 socket + 1 redundant power slot; -20°C to 60°C |
| 8380-118 | IGS-5400-2P-DC | 4 Modular Slots L2 plus Industrial Switch Chassis w/1x DC 12~56VDC input + 1 redundant power slot; -20°C to 60°C |
| 8380-130 | IPGS-5400-2P-HV | 4 Modular Slots L2 plus Industrial PoE Switch Chassis ; w/1x isolated AC/DC 75~265VAC/100V~370VDC power supply+ 1 redundant power slot+ 1 DC48V PoE redundant power input; -20°C to 60°C |
| 8380-138 | •IPGS-5400-2P-DC | 4 Modular Slots L2 plus Industrial Switch Chassis ; w/1x isolated DC 12~56VDC power supply + 1x redundant power socket + 1x 48VDC PoE power input; -20°C to 60°C |
| 8380-500 | IGS-5424-PTP-DC | 24xGT PTP+ 4dual speed SFP, 1 DC 12~48V input, -20to60C |
| 8380-601 | IPGS-5424-PTP-DC | 24xGT PTP PoE+4dual speed SFP,redundant 48V DC input,-20to60C |
| 8380-114 | 8xGIGA T-PoE-PTP at/af Module | 8x 10/100/1000T PoE at/af Module; Support PTP v2 under 1μs; -20°C to 60°C |
| 8380-115 | 4x SFP-PTP Module | 4x Dual Speed SFP module for 100M SFP or Gigabit SFP; Support PTP v2 under 1μs ; -40°C to 75°C |
| 8380-105 | 8xGIGA T-PTP Module | 8x 10/100/1000T Module; Support PTP v2 under 1μs; -40°C to 75°C |
| 8380-106 | 8x SFP-PTP Module | 8x Dual Speed SFP module for 100M SFP or Gigabit SFP; Support PTP v2 under 1μs ; -40°C to 75°C |
| 8380-107 | 4x GIGA T + 4x SFP-PTP Module | 4x 10/100/1000T + 4 x 100/1000M Dual Speed SFP Module ; Support PTP v2 under 1μs -40°C to 75°C |
| EOTH000701 | Isolated Power 85-265VAC | 100-370VDC 1.5A , 47-63HZ |
| EOTH000703 | Isolated Power 85-265VAC, | IEC320 socket, 1.5A, 47-63HZ |
| EOTH000704 | DC input module | Power input module 12~56VDC, 2.5A |
| Web/Smart Switches - All Gigabit | ||
| 8370-145 | LGS-1104; 4 Ports (10/100/1000) +1 SFP Switch, Web/Smart/TagVLAN Switch | |
